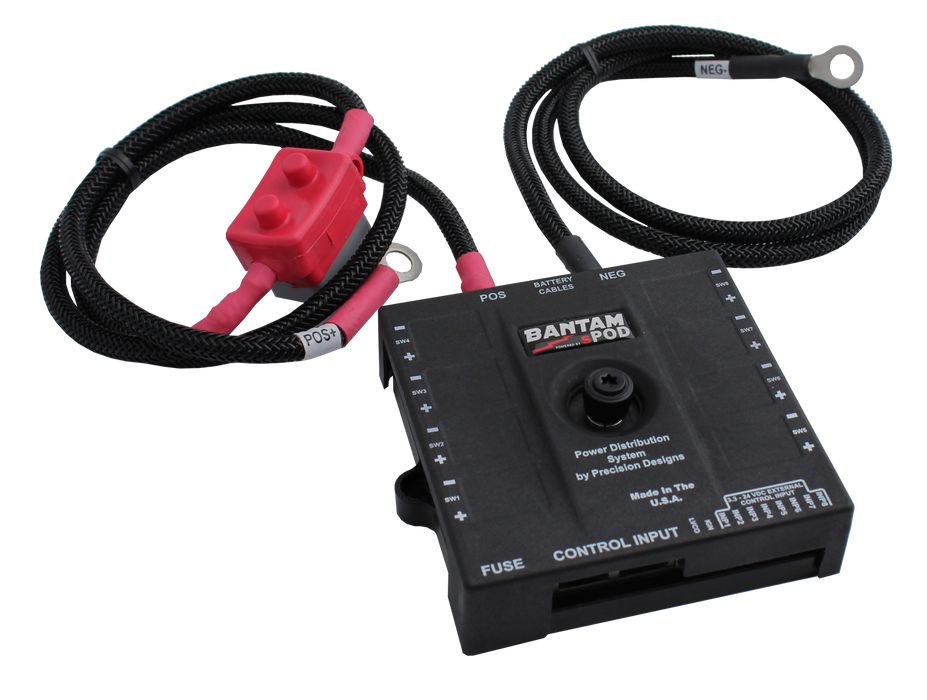

sPOD B8-800-36 Add-on Bantam with 36 Inch Battery Cables (Controller Not Included) sPOD
fast & Reliable
Sold and shipped out of the USA
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Description
The Bantam add-on will allow you to expand your existing 8-circuit sPOD setup by 8 circuits. This add-on is to be used in conjunction with an existing 8-circuit sPOD system (Bantam/SourceSE and controller). sPOD systems will save hours of wiring and installation time!

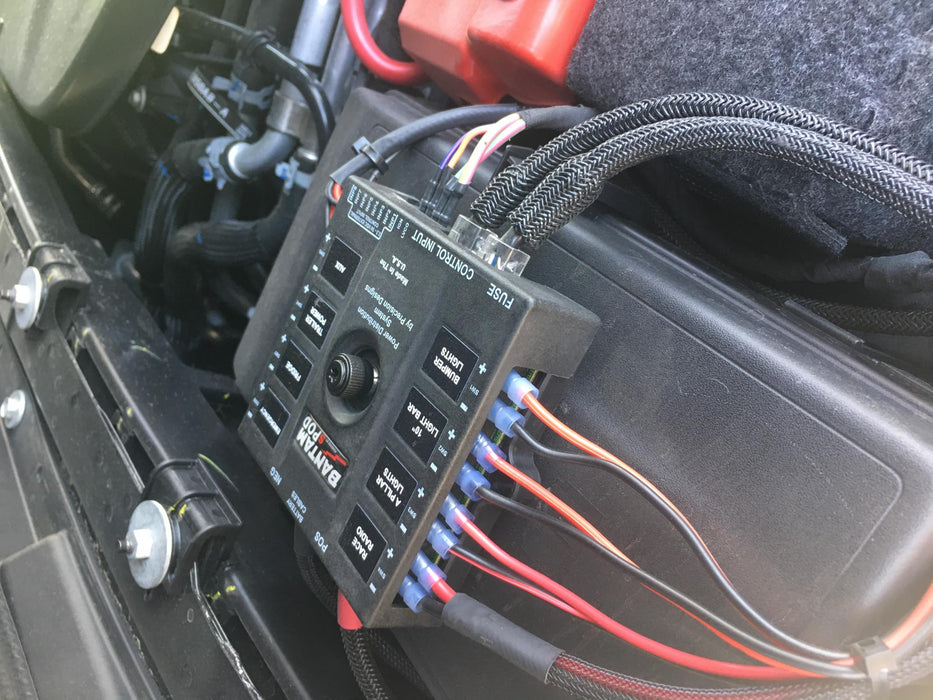

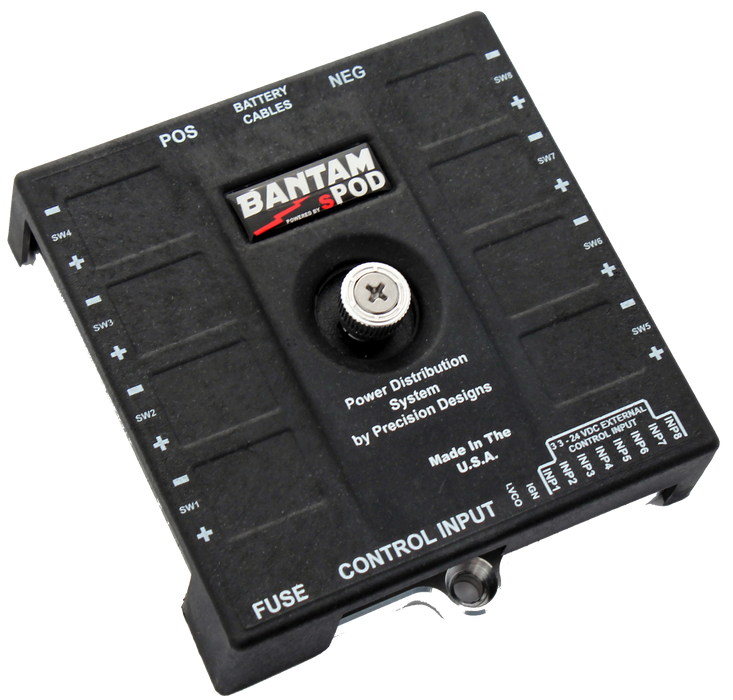

Bantam is a small, 8-circuit control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/24VDC accessories. Due to the Bantam's small footprint, the placement options are endless!
No cutting, fishing wires into the cab or tapping into the vehicle's electrical system. It's the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.
BANTAM Features:
- High current capabilities (30 amps per circuit) with a maximum 100 amp capacity.
- Operates on 12VDC or 24VDC.
- Small footprint: 4.0 Inch W x 4.0 Inch L x 4.0 Inch 1.125T (See side by side comparison to our Original 8-circuit system).
- Programmable functions for: Dimming, Strobe, Flash and Momentary.
- Switch linking (create a master switch to control other switches within the same panel).
- Flexibility to add multiple controller types such as: Touchscreen, HD smart controller, hard rocker switches and wirelessly using the Bantam app on a smart phone, tablet or any Bluetooth LE enabled device.
- Expandable up to 32 circuits that can be controlled with single touchscreen, or infinite number of circuits with use of additional controllers, limited only by the supplied power source.
- Ethernet cable interconnect with a 25 foot distance limitation.
- Fully programmable via free Bantam app.
- Current monitoring (via touchscreen and app).
- Protection against: Over current, over heat, short, reverse polarity protection, and field collapse.
- Low voltage detection circuit that will monitor battery voltage and shut system, and all accessories attached to it, off when battery voltage drops below 11.2VDC.
- Ignition control for two circuits (switches 1 and 2).
- Safety lock-out for two circuits (switches 1 and 2).
- 16-position terminal block for end user connections (both ground and power).
- Removable dust cover with spots for legends and port identifications.
- Universal mount.
- 8-position input terminal block for controlling outputs (3.3VDC 24VDC inputs).
External Controller Options: (not included with system and can only be used in conjunction with an sPOD controller)
- Third party switches
- Computers
- Arduino
- Raspberry Pi
- Alpine Audio systems KAC-001 head unit controller
- Sensors, thermostats, pressure switches, fan controllers and more
Specifications
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/spod%20small%20logo.jpg |
| capacity | 100 AMP |
| hardware_included | Yes |
| height | 6.0 |
| last_update | 2023-03-15 07:01:20 |
| last_update | 2023-04-25 08:20:53 |
| last_update | 2023-06-20 04:16:38 |
| length | 13.0 |
| sold_as | Kit |
| Universal | Yes |
| vehicle_type | Truck/SUV|Jeep|ATV/UTV |
| Warranty | 1 Year Limited Warranty |
| weight | 6.0 |
| width | 9.0 |
