sPOD 610-07LT-LED-R JK 6 Switch Panel with Dual Lit LED Red Switches W/Air Gauge 07-08 Wrangler JK sPOD
by sPOD
SKU ds_GNJV_610-07LT-LED-R
fast & Reliable
Sold and shipped out of the USA
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Description
JK 6 Switch Panel with dual lit LED Red switches W/Air Gauge for 2007-2008 Wranglers. Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 11.2VDC and cuts-back in at 12.8VDC so there is enough juice to start your vehicle in case you left an accessory on!

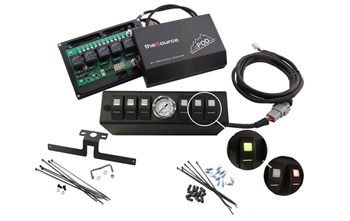

Each system includes the following:
- All required mounting brackets and hardware. System will come pre-wired ready to install.
Included:

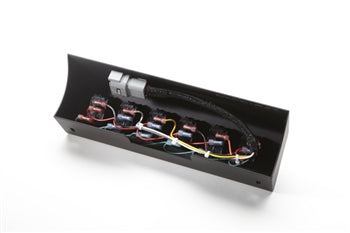

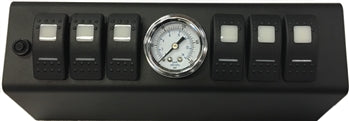

- Switch panel, six with dual lit LED Red switches (installed and pre-wired).
- Each end has an automotive connector made by Deutsch.
- Complete Air Gauge kit 0-200 psi Air Gauge w/Quick Release Camozzi fittings and 10 foot of high pressure connection line.
- All wires are wrapped in high temp abrasion resistant nylon braided sleeving.
- The Source 6 Circuit power distribution system includes:
- 12 position terminal block for accessory attachment
- 6 Bosch style cube style relays (SPST 40amp) (plug-in style)
- 6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
- 6 Diodes to protect sensitive accessories such as LED lights from field collapse
- Inline 50amp manual resetting circuit breaker
- 8 gauge power leads with crimped and soldered terminal for connection to the battery
- Fuse for LVCO which can be removed to bypass the LVCO

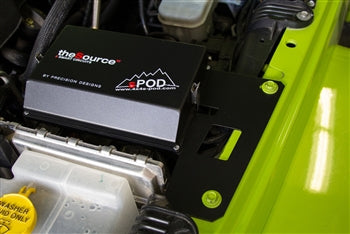

- Mounting bracket for Jeep Wranglers
Specifications
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/spod%20small%20logo.jpg |
| hardware_included | Yes |
| height | 12.0 |
| last_update | 2023-03-15 07:01:40 |
| last_update | 2023-04-25 08:21:07 |
| last_update | 2023-06-20 04:17:13 |
| length | 12.0 |
| sold_as | Each |
| Universal | No |
| vehicle_type | Jeep |
| Warranty | 1 Year Limited Warranty |
| weight | 7.5 |
| width | 7.0 |
