Quick Fuel Technology 30-260QFT Electric Fuel Pump
SKU ds_BJVK_30-260QFT
fast & Reliable
Sold and shipped out of the USA
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Description

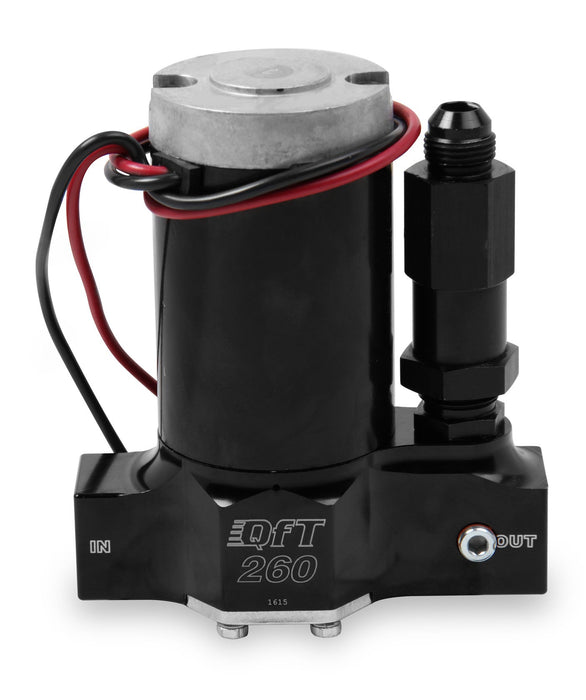

Designed for drag race applications. Supports up to 1000 HP for engines with rear-mounted fuel cells and up to 1600 HP for engines with front-mounted fuel cell. 260 GPH flow @ 15 PSI, motor draws 9.1 Amps @ 20 PSI. #10AN O-ring inlet and outlet ports, #8AN bypass port. Black anodized billet housing, highly efficient 6-vane design. All armatures are epoxy coated to secure windings and extend motor life. Base integrated as bottom end cap of motor promoting better pump sealing and shaft alignment. Features externally adjustable bypass to eliminate pump cavitation and stabilize fuel flow. Compatible for use with all fuels.
Specifications
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_DEF | Electric Fuel Pump |
| Description_DES | Electric Fuel Pump |
| Description_EXT | Electric Fuel Pump; 260 GPH Flow Rate At 7 psi.; -10 AN Inlet/Outlet; And -8AN By Pass; Designed For Short Duration Competition; |
| Description_FAB | 1/8 in. NPT Gauge Port |
| Description_FAB | 260 GPH Flow At 20 Psi |
| Description_FAB | Compatible With All Fuels |
| Description_FAB | Designed For Drag Race And Short Duration Competition |
| Description_FAB | Flow/Pressure/Leak Tested Prior To Shipment |
| Description_FAB | Hard Coat Anodized Billet Aluminum Housing |
| Description_FAB | Highly Efficient 6 Vane Design |
| Description_FAB | Motor Draws 10.5 Amps At 20 PSI |
| Description_FAB | No. 10 AN Inlets And Outlets |
| Description_FAB | Supports Up To 1000 HP For Engines w/Rear Mounted Cell |
| Description_FAB | Supports Up To 1600 HP For Engines w/Front Mounted Cell |
| Description_INV | QFT 260 Fuel Pump |
| Description_LAB | Proposition 65 |
| Description_MKT | Designed for drag race applications. Supports up to 1000 HP for engines with rear-mounted fuel cells and up to 1600 HP for engines with front-mounted fuel cell. 260 GPH flow @ 15 PSI, motor draws 9.1 Amps @ 20 PSI. #10AN O-ring inlet and outlet ports, #8AN bypass port. Black anodized billet housing, highly efficient 6-vane design. All armatures are epoxy coated to secure windings and extend motor life. Base integrated as bottom end cap of motor promoting better pump sealing and shaft alignment. Features externally adjustable bypass to eliminate pump cavitation and stabilize fuel flow. Compatible for use with all fuels. |
| Description_SHO | Fuel Pump Electric |
| Free Flow GPH | 260 |
| Fuel Type | Alcohol |
| Fuel Type | E85 |
| Fuel Type | Gasoline |
| height | 3.8 |
| length | 8.4 |
| LTL | N |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 3.9 |
| width | 7.7 |
