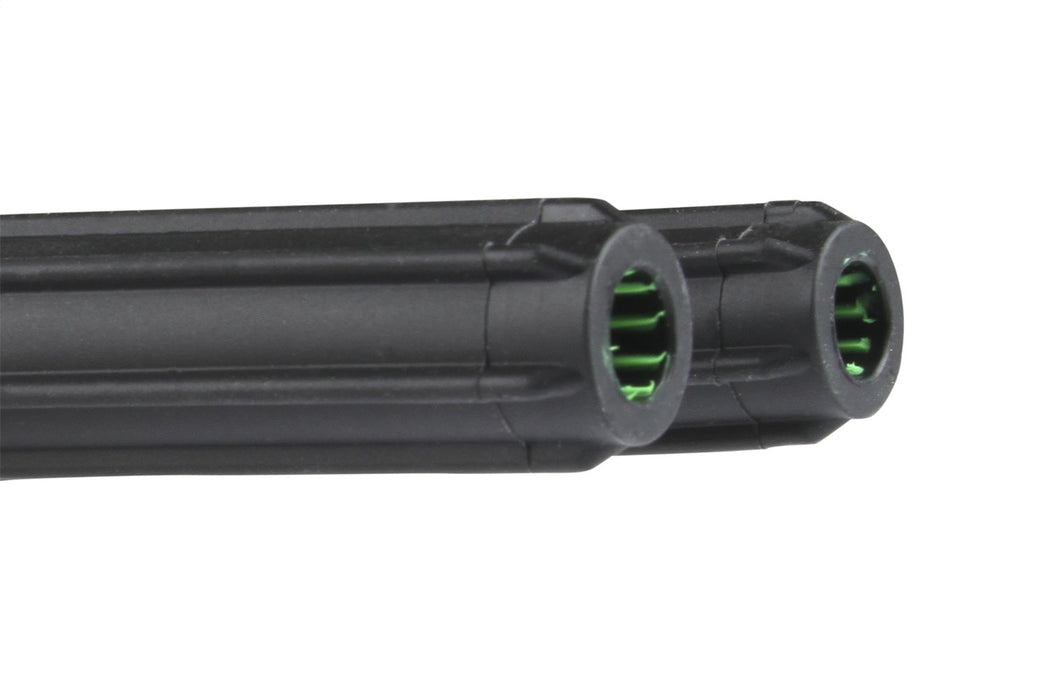

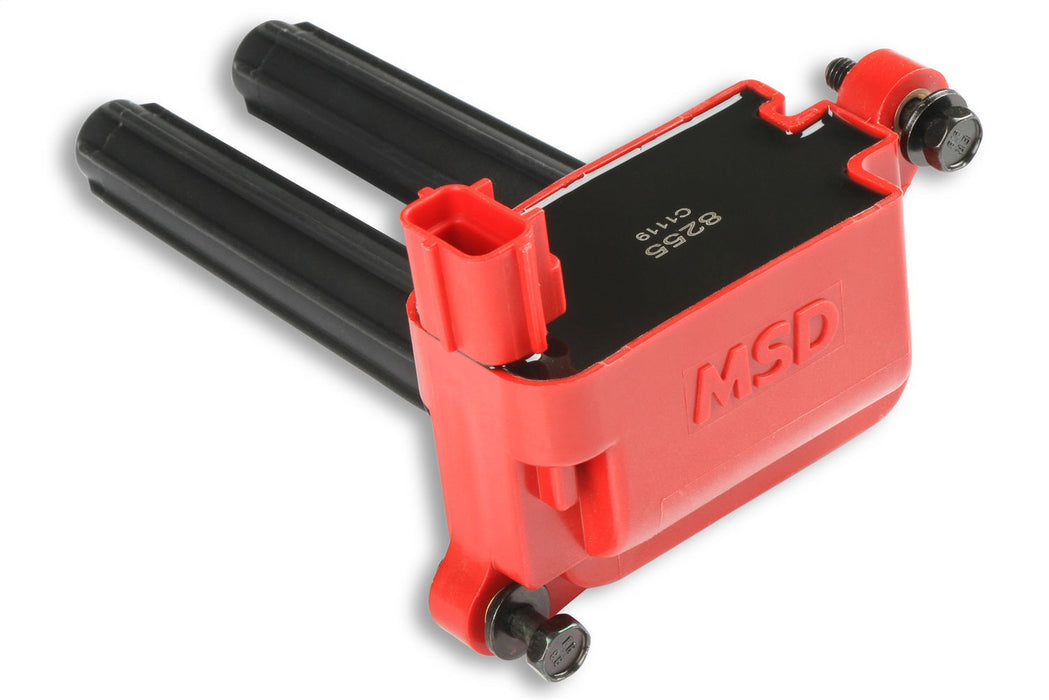

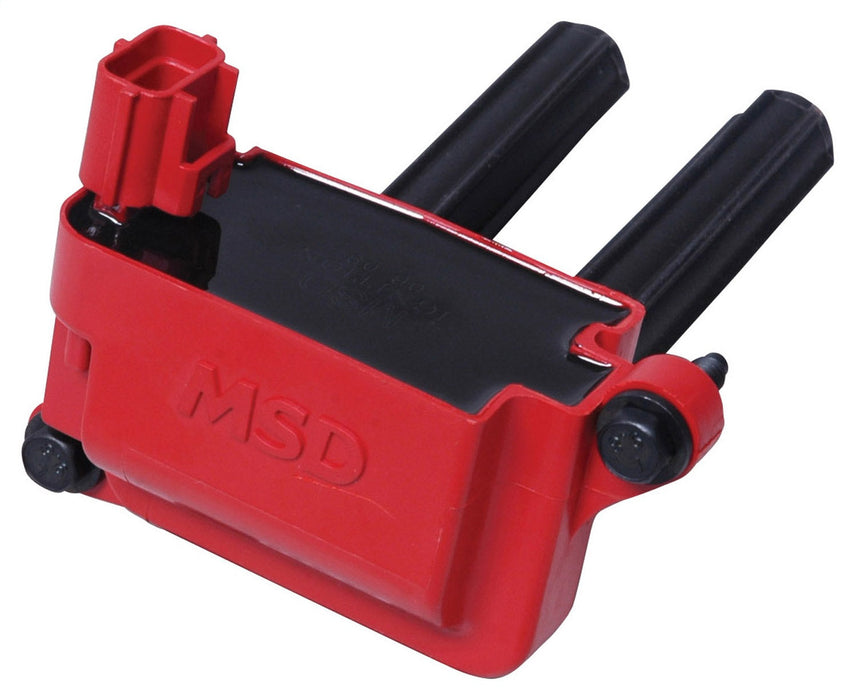

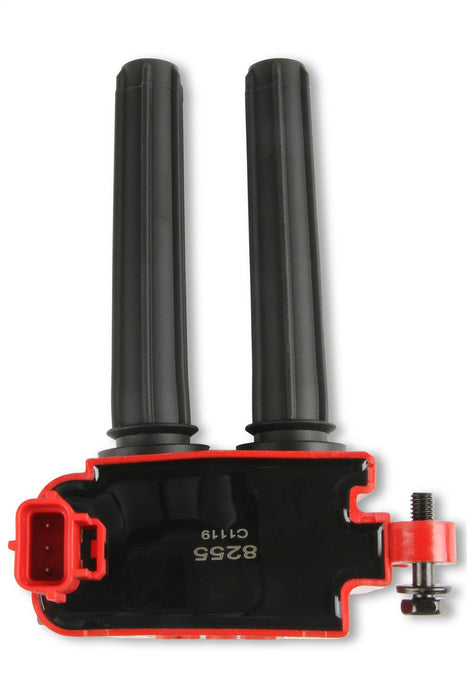

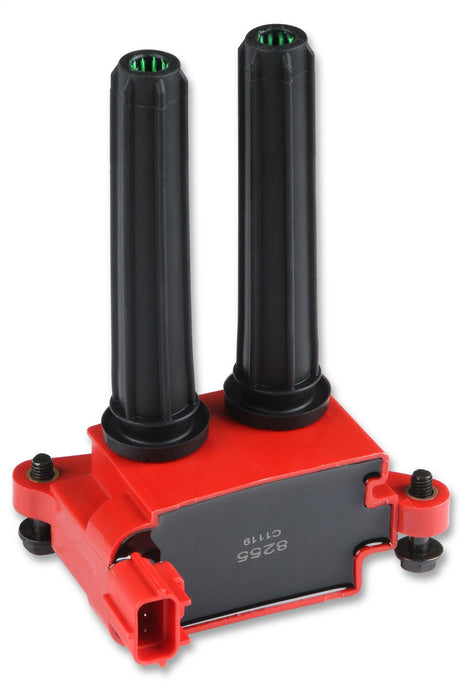

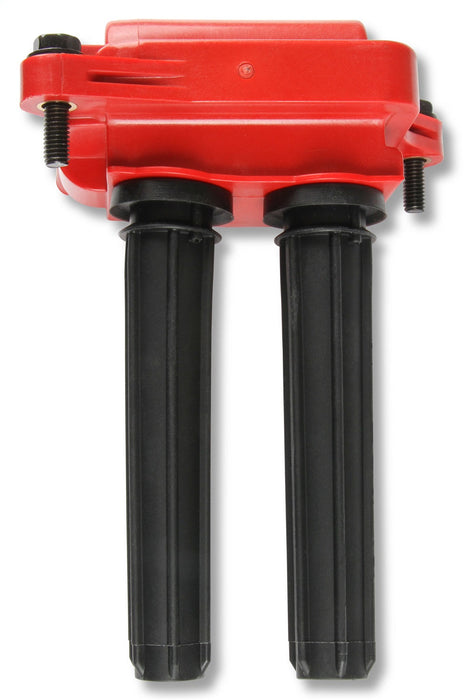

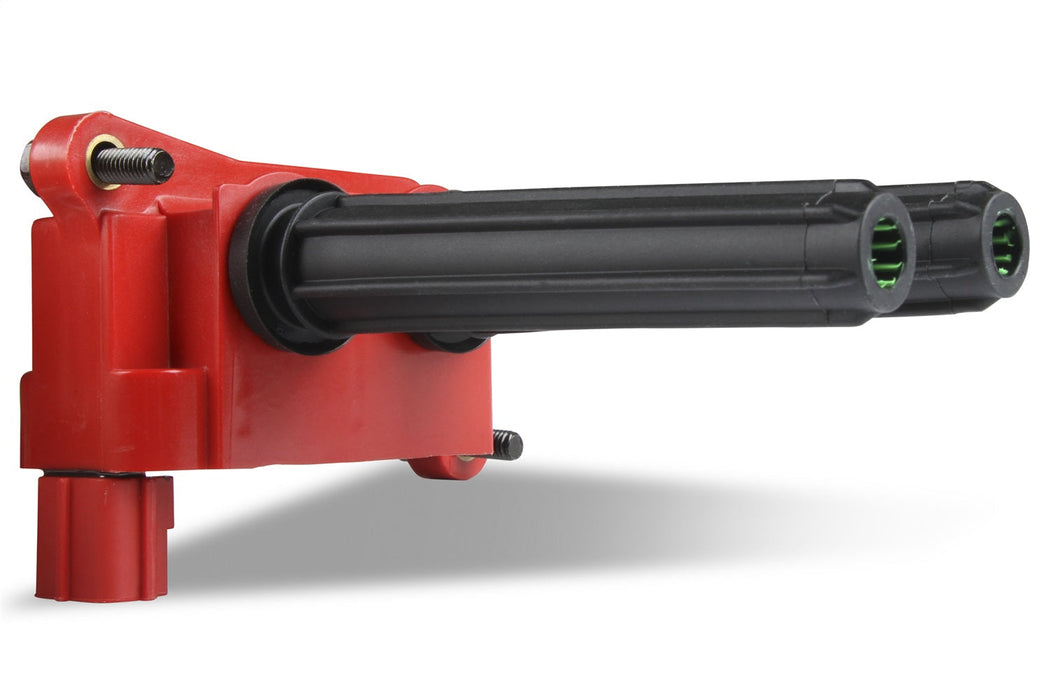

MSD 8255 Hemi Coil-On-Plug Direct Ignition Coil
by MSD
SKU ds_BCCX_8255
fast & Reliable
Sold and shipped out of the USA
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$122.41
-
Original price
$122.41
Original price
$122.41
$122.41
$122.41
-
$122.41
Current price
$122.41
Description
Fire up your late model hemi with a set of MSD's blaster coils. The coils are a direct bolt-in and are spec'd with superior materials and winding ratios to improve the output of the coil while retaining the factory fit.
Resources
Installation InstructionsSpecifications
| Color | Red |
| Description_ASC | Holley Performance Emission Code 1: This part is legal for sale and use on Emissions Controlled Vehicles; in all 50 states; when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle |
| Description_DEF | Direct Ignition Coil |
| Description_DES | Hemi Coil-On-Plug Direct Ignition Coil |
| Description_EXT | Hemi Coil-On-Plug Direct Ignition Coil; Direct Bolt-In To Factory Connectors; 2.15 mH Induction; 36000 Max Voltage; 1320 mS Spark Duration; 80:1 Turns Ratio; Red; Single; |
| Description_FAB | Direct Bolt-In to Factory Connectors |
| Description_FAB | Improved High RPM Operation |
| Description_FAB | Patented Winding Design and Materials |
| Description_FAB | Secondary Current (mA): 56 mA |
| Description_INV | Coil; 5.7/6.1L; HEMI; 05-14; Single |
| Description_LAB | Proposition 65 |
| Description_MKT | Fire up your late model hemi with a set of MSD's blaster coils. The coils are a direct bolt-in and are spec'd with superior materials and winding ratios to improve the output of the coil while retaining the factory fit. |
| Description_SHO | Direct Ignition Coil |
| Engine Make/Size | 5.7L / 6.1L HEMI; 2005 - 2014 |
| height | 3.25 |
| Inductance | 2.15 mH |
| length | 8.95 |
| LTL | N |
| Maximum Voltage | 36000 |
| Package Quantity | Single |
| Position | N/A |
| Primary Resistance | .403 ohms |
| Secondary Resistance | 14.5K ohms |
| Spark Duration | 1320 mS |
| Spark Energy | 96 mJ per spark |
| Turns Ratio | 80:1 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 1.175 |
| width | 5.75 |
