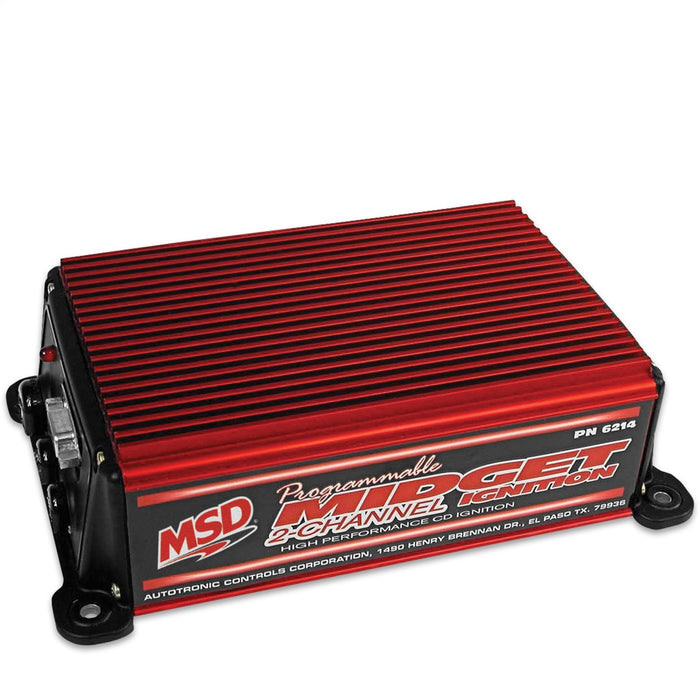

MSD 6214 Midget DIS2 Programmable Race Ignition
by MSD
SKU ds_BCCX_6214
fast & Reliable
Sold and shipped out of the USA
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Description
The programmable midget ignition is a complete electronic distributor less system consisting of a powerful capacitive discharge ignition control, a four tower high output coil pack and uses two non-magnetic pick-ups with a trigger wheel as a crank trigger source. This takes all of the mechanical variables out of the picture to produce exact ignition timing. Adding to the accuracy and high output of this ignition system, is the advantage of being able to precisely program the timing throughout the engine's entire rpm range. By using the optional hand held programmer, PN 7550, or MSD's pro-data software package on a Windows based PC, racers can program two different timing curves down to .1 degree per 100 rpm increments. Other features of the programmable midget ignition include a rev limiter to protect the engine from overrev damage, a start retard and a circuit that monitors the battery supply voltage. The midget ignition produces full power capacitive discharge sparks at any rpm so you can be assured of complete combustion. To control this power and the programs, a 15 MHz microcontroller analyzes the various inputs and is capable of extremely quick compensations to maintain exact timing and rpm. The midget ignition is supplied with the ignition control, two non-magnetic pick-ups, trigger magnet, on and off switch and software.
Resources
Installation InstructionsSpecifications
| Description_ASC | Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle |
| Description_DEF | Ignition Control Module |
| Description_DES | Midget DIS2 Programmable Race Ignition |
| Description_EXT | Midget DIS2 Programmable Race Ignition; Coil Pack Sold Separately; Crank Trigger Wheel Must Be Fabricated For Each Application; |
| Description_FAB | Battery Monitor Circuit Shows A Low Voltage Time %age |
| Description_FAB | Battery monitor circuit shows real time battery voltage |
| Description_FAB | Plot 2 timing curves from 800-15000 rpm in 0.1 deg. Increments |
| Description_FAB | Program A Start Retard To Ease Cranking |
| Description_FAB | Select A Rev Limit From 2000 - 15000 rpm in 100 rpm Increments |
| Description_FAB | Switch between 2 timing curves as track conditions change |
| Description_INV | Midget DIS-2 Programmable Race Ignition |
| Description_LAB | Proposition 65 |
| Description_MKT | The programmable midget ignition is a complete electronic distributor less system consisting of a powerful capacitive discharge ignition control, a four tower high output coil pack and uses two non-magnetic pick-ups with a trigger wheel as a crank trigger source. This takes all of the mechanical variables out of the picture to produce exact ignition timing. Adding to the accuracy and high output of this ignition system, is the advantage of being able to precisely program the timing throughout the engine's entire rpm range. By using the optional hand held programmer, PN 7550, or MSD's pro-data software package on a Windows based PC, racers can program two different timing curves down to .1 degree per 100 rpm increments. Other features of the programmable midget ignition include a rev limiter to protect the engine from overrev damage, a start retard and a circuit that monitors the battery supply voltage. The midget ignition produces full power capacitive discharge sparks at any rpm so you can be assured of complete combustion. To control this power and the programs, a 15 MHz microcontroller analyzes the various inputs and is capable of extremely quick compensations to maintain exact timing and rpm. The midget ignition is supplied with the ignition control, two non-magnetic pick-ups, trigger magnet, on and off switch and software. |
| Description_SHO | IgnCntrlModule |
| height | 4.5 |
| length | 12.1 |
| LTL | N |
| RPM | 15000 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 5.0 |
| width | 8.5 |
