Mile Marker 76-53246BW 9500 LB Winch W/ 92 Foot Synthetic Rope 4.9 HP Series Wound Motor SEC9.5 ES Premium Mile Marker
fast & Reliable
Sold and shipped out of the USA
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Description
Proven Winch Design, Unmatched Value, Heavy duty series wound motors and rugged planetary gear sets are the backbone of Mile Marker. With robust controls and a fully sealed solenoid and body, the SEC12 and SEC95 are proven winches at an unmatched value.
The Mile Marker SEC95 premium Jeep/Truck/SUV winch with a rugged 9,500 pound pull strength stands up to most any off-road environment. Powerful series-wound motors and rugged planetary gear sets are the backbone of this winch.
With robust controls, fully sealed 400-amp solenoid and body, and an integrated kill switch, the SEC95 is an industry-proven winch at an unmatched value.
Built with marine grade remote control connectors and fully-sealed, submersible, water, mud, and snow proof, each SEC95 comes with a 3/8 inch x 92 Foot Synthetic Rope, Aluminum Hawse Fairlead, stainless steel hardware, corrosive-resistant, a hook, and a handheld remote control with a 12 foot cord.
Features:
- 4.9 HP Series Wound Motor
- Rugged Planetary Gear Sets
- Clockable Gear Housing
- Fast Line Speeds
- Submersible, 400 Amp Solenoid
- Automatic Load Holding Brake
- Corrosion Resistant Stainless Steel Fasteners
- 92 Synthetic Rope
- Aluminum Hawse Fairlead
- Waterproof

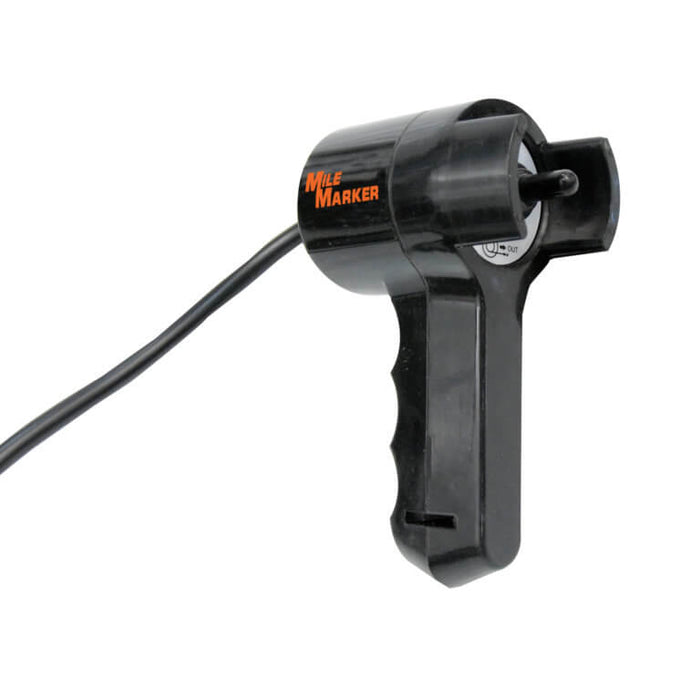

- Handheld Remote control
Specifcations:
- Rated line pull 9500 lbs (4309 Kgs)
- Gear Train 3 Stage Planetary
- Gear Ratio 210:1
- Motor Series Wound, 4.9 hp (3.6 kw), 12V
- Remote Control Power In, Power Out Remote, 12 foot
- Dimensions (LxWxH) 22.25 inch X 6.25 inch X 8.00 inch (565.2 mm X 158.8 mm X 203.2 mm)
- Steel Cable 3/8 inch X 100 foot (nominal 14,400 lbs, 6531 kg) (9.53 mm X 30.5 m)
- Drum Size 2.5 inch X 9 inch (63.5 mm X 228.6 mm)
- Net weight 67 lbs (30.3 Kg)
- Bolt Pattern 4 Bolt Pattern, 4.5 inch X 10 inch, (114.3 mm X 254 mm)
Resources
Installation InstructionsSpecifications
bolt_pattern | 4 Bolt Pattern |
brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/Mile-Marker-winch-2021-logo-locking-hubs-winches-recovery-equipment.png |
cable_length | 92 Foot |
Description_DES | SEC9.5 Winch |
Description_EXT | SEC9.5 Winch; ES Premium Truck/SUV/Jeep; 9500 lb. Capacity; w/SR; |
Description_FAB | Automatic Load-Holding Brake |
Description_FAB | Free Spooling |
Description_FAB | Low Electric Current |
Description_FAB | Planetary Gear System For Fast Line Speed |
Description_FAB | Power In And Out |
Description_FAB | Waterproof - Fully Submersible |
Description_INV | ELECTRIC WINCHES |
Description_MKT | This 9500 lb Waterproof Winch contains 19 watertight seals to conquer any element that might be thrown its way. With fast line speeds and corrosion-free construction, combined with a rated line pull of 9500 lbs, this winch is great for your rig! |
Description_SHO | Winch |
drum_diameter | 2.5x9 Inch |
gear_ratio | 210:01:00 |
gear_train | 3 Stage Planetary |
height | 9.75 |
last_update | 2022-03-06 03:54:38 |
length | 25.75 |
LTL | N |
material_l | Metal |
prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
pull_capacity | 9500 LB |
Series | Sec9.5 Series |
sold_as | Each |
Style | Electric Winch |
Universal | Yes |
vehicle_type | Jeep|Truck/SUV |
volts | 12 Volt |
Warranty | Limited Warranty |
waterproof_rating | IP68 Rated |
weight | 70.2 |
width | 14.5 |
winch_motor | 4.9 HP Series Wound Motor |
