Mile Marker 75-50085C-24 9000 LB Hydraulic Winch 14 C.I. 24V Hydraulic Motor w/Roller Fairlead 100 Foot Cable Mile Marker
fast & Reliable
Sold and shipped out of the USA
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Description

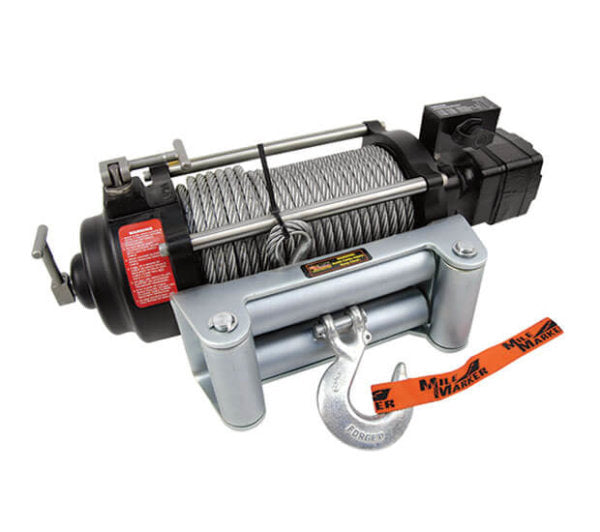

The Mile Marker HI9000 Series Hydraulic winch is made to be permanently mounted in the front or rear of a vehicle and comes with the solenoid control valve factory mounted to the winch, allowing for a more efficient installation.
Utilizing the vehicle's power steering system as its power source ensures the HI9000 will run continuously, without draining the battery.
Completely element proof construction, corrosion and water resistant, the HI9000 features two speed, free spooling, mechanical lock, an integrated solenoid valve, stainless steel tie bars and fasteners, 100 feet of steel cable, 9000 pounds of pulling capacity and includes an illuminated joystick remote control.
Requires a vehicle specific 35 Series valve adapter kit to adapt to the vehicle's power steering pump.
Features:
- 2 Speed
- 24 Volt
- Includes Illuminated Joystick Remote Control
- Mechanical Lock
- Freespooling
- Integrated Solenoid Valve
- submersible
- Corrosion Resistant
- Stainless Steel Tie Bars and Fasteners
- 100 Feet of Steel Cable
Specifications:
- Gear Train Planetary
- Gear Ratio 6:1
- Motor 9k: 14 cubic inch
- Control Pendant Illuminated Joystick Remote, 12 foot
- Cable 3/8 inch X 100 feet (nominal 14,400 lbs) (9.53 mm X 30.5 m)
- Drum Size 2.5 inch X 9 inch (63.5 mm X 228.6 mm)
- Net weight 103 lbs (47 kgs)
- Bolt Pattern 4 Bolt Pattern, 4.5 inch X 10 inch, (114.3 mm X 254 mm)
- Power Steering Min. Requirements 3.5 GPM at 1500 psi (13.25 L/m at 103.4 bars)
Resources
Installation InstructionsSpecifications
| bolt_pattern | 4 Bolt Pattern |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/Mile-Marker-winch-2021-logo-locking-hubs-winches-recovery-equipment.png |
| cable_length | 100 Foot |
| drum_diameter | 2.5x9 Inch |
| gear_ratio | 6:01 |
| gear_train | Planetary |
| height | 10.0 |
| last_update | 2022-03-06 03:56:29 |
| length | 15.0 |
| material_l | Metal |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| pull_capacity | 9000 LB |
| Series | H Series |
| sold_as | Each |
| Style | Hydraulic Winch |
| Universal | Yes |
| vehicle_type | Jeep|Truck/SUV |
| volts | 24 Volt |
| Warranty | Limited Warranty |
| weight | 97.0 |
| width | 28.0 |
