Diode Dynamics DD7044 SS3 Sport Type M Kit ABL White SAE Fog Diode Dynamics
fast & Reliable
Sold and shipped out of the USA
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Description

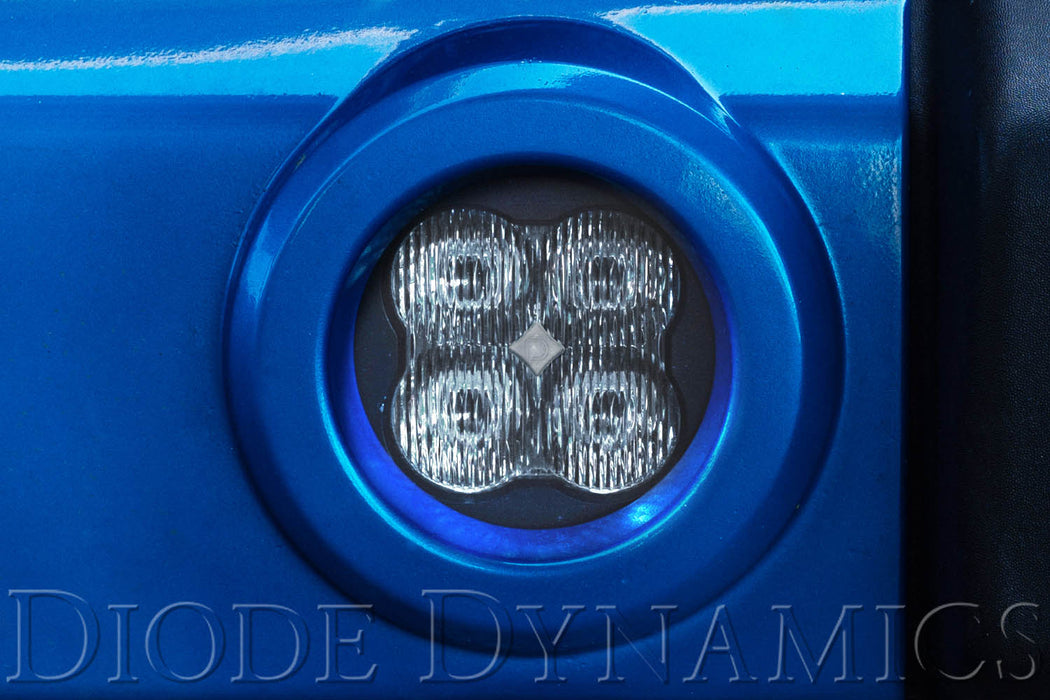

Overview. Upgrade your fog lights with our SS3 Type M Fog Light Bracket Kit! Featuring higher output intensity than any other 3in light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package. With the included round bezel the SS3 Fog Kit has a clean factory-style appearance only much brighter!
Plug and Play. Thanks to custom-molded brackets the SS3 Fog Light Bracket Kit can be installed on your vehicle in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Wire adapters are included with the kit allowing you to connect the lights to your factory bulb sockets - no additional wiring needed!
Backlight Functionality. The Stage Series 3in LED Pod is now available with a distinctive backlight in a brilliant amber color. The SS3's backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products.
SAE Compliant. When installed as a pair and aimed in accordance with your state's regulations the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light and the Fog pattern meets SAE J583 standard as a Foglamp for legal on-road use.
Features:
- Advanced TIR optics provide high efficiency and focus
- SAE-compliant road-legal output
- Includes round bezel for factory-style appearance
- Plug and play no modification needed
- Durable powdercoated aluminum extrusion
- Engineered and Assembled in USA
Included in the box:

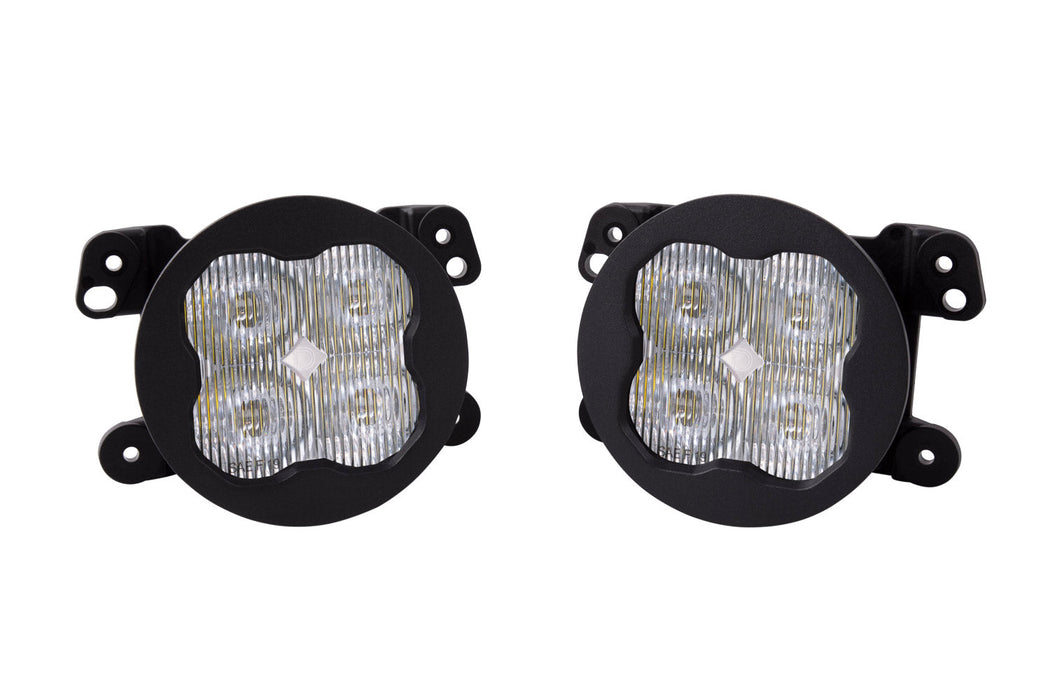

- Two (2) SS3 3 inch Round LED Pods
- Two (2) 9006 DT Adapters
- Two (2) 5202 DT Adapters
- Mounting brackets and hardware
Resources
Installation InstructionsSpecifications
| beam_angle | 80x8 Degrees |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/diode%20ASAP.png |
| color_l | White |
| Connector | Deutsch DT Input |
| height | 4.0 |
| last_update | 2023-02-21 02:28:53 |
| last_update | 2023-03-20 08:15:14 |
| last_update | 2023-06-21 14:46:42 |
| length | 14.0 |
| lens_material | Polycarbonate |
| light_pattern | Fog |
| lumens | 1520 Lumens |
| LUX | 10 600 cd |
| material_l | Aluminum Casting Rubber Gasket |
| material_l | Aluminum Casting, Rubber Gasket |
| Series | SS3 |
| sold_as | Pair |
| Universal | Yes |
| vehicle_type | Jeep |
| vehicle_type | Jeep|Truck/SUV|Car |
| volts | 9-16V |
| Warranty | 8 Year Warranty |
| waterproof_rating | IP69K Waterproof, High Pressure |
| weight | 3.5 |
| width | 11.0 |
