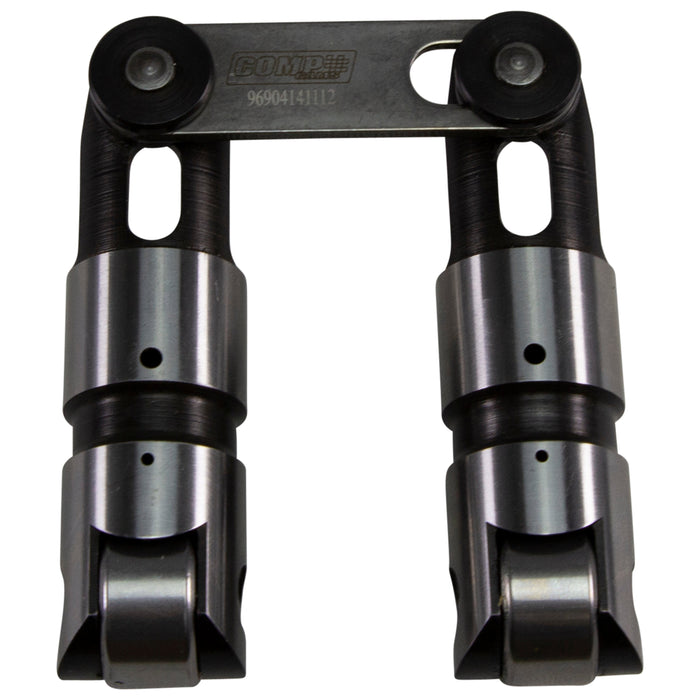

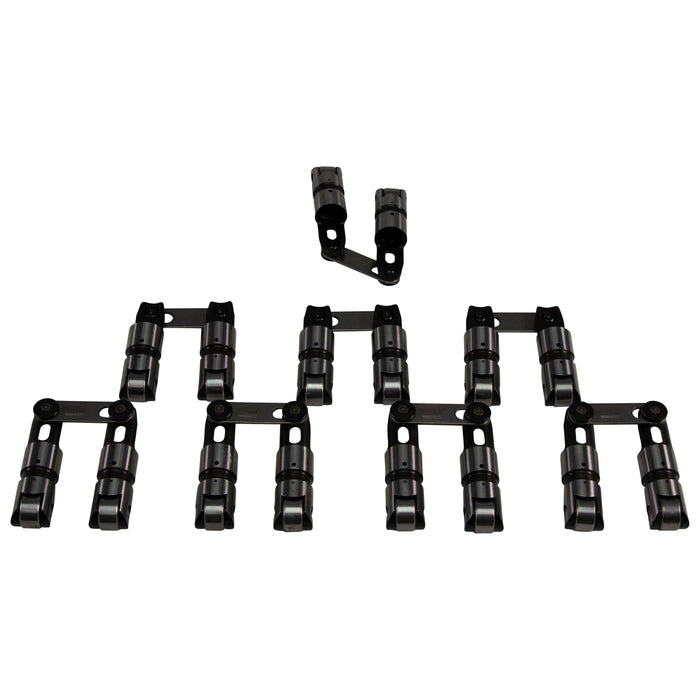

COMP Cams 96831-16 Sportsman Solid Roller Lifter Set w/ Bearing for Chrysler R3

Sportsman Lifters from COMP Cams are designed to be a premium and lighter weight upgrade over Endure-X Lifters and a value alternative to the Elite Race option. Sportsman Lifters are offered in two configurations: a standard/traditional needle bearing axle/wheel design or an optional bronze bushing axle/wheel setup. And for Chevrolets, there are also left or right offset pushrod seat options. Each design features two pressurized EDM oil feeds to the axle, along with an edge orifice feed to the wheel. This design delivers a more reliable oil feed than most other options on the market. Sportsman Lifters also feature a shallower oil band than competitors’ versions for increased strength and rigidity, while internal machining helps to reduce weight. The body design utilizes a skirted wheel that strengthens the lifter ears and also provides more contact area with the lifter bore for further lifter stability. In addition, staked axles eliminate clips and provide robust axle retention. This permanent axle retention feature increases the stiffness of the lifter ears and helps prevent the ears from spreading. Sportsman Lifters are built from 8620 premium steel for increased strength and wear resistance and feature a captured link bar design. They utilize a tapered and slotted link bar tower for reduced weight and improved aesthetics. The lifters also feature a tall body to enable use in both standard and .300" tall lifter bores – the result is increased strength and less lifter bore wear.

Resources

Installation Instructions

Resources

Installation Instructions

Amazon ASIN	N/A
C.A.R.B. E.O. Number	N/A
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?	Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?	Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?	Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?	No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?	Yes, but must be a race/competition only vehicle.
C.A.R.B. Exemption Reason	N/A
California Proposition 65	WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Description_ASC	Available in a pair under 96904
Description_DEF	Engine Valve Lifter Kit
Description_DES	Sportsman Solid Roller Lifter Set w/ Bearing for Chrysler R3
Description_INV	Sportsman Lifters w/ Bearing Chrys R3
Description_KEY	Chrysler R3
Description_MKT	Sportsman Lifters from COMP Cams are designed to be a premium and lighter weight upgrade over Endure-X Lifters and a value alternative to the Elite Race option. Sportsman Lifters are offered in two configurations: a standard/traditional needle bearing axle/wheel design or an optional bronze bushing axle/wheel setup. And for Chevrolets, there are also left or right offset pushrod seat options. Each design features two pressurized EDM oil feeds to the axle, along with an edge orifice feed to the wheel. This design delivers a more reliable oil feed than most other options on the market. Sportsman Lifters also feature a shallower oil band than competitors’ versions for increased strength and rigidity, while internal machining helps to reduce weight. The body design utilizes a skirted wheel that strengthens the lifter ears and also provides more contact area with the lifter bore for further lifter stability. In addition, staked axles eliminate clips and provide robust axle retention. This permanent axle retention feature increases the stiffness of the lifter ears and helps prevent the ears from spreading. Sportsman Lifters are built from 8620 premium steel for increased strength and wear resistance and feature a captured link bar design. They utilize a tapered and slotted link bar tower for reduced weight and improved aesthetics. The lifters also feature a tall body to enable use in both standard and .300" tall lifter bores – the result is increased strength and less lifter bore wear.
Description_SHO	SmnSrLftrsChryR3
Description_SHP	None
Engine Family	Chrysler R3 48 Degree Bank Angle
height	2.91
length	10.7
Lifter Diameter	0.904
Lifter Series	Sportsman
Lifter Type	Solid Roller
LTL	N
Pushrod Seat Location	8 Pairs Centered
Title	Sportsman Solid Roller Lifter Set w/ Bearing for Chrysler R3
weight	134
weight	4.95
width	5.51
