BD Diesel 1030606-1/2 Xtruded Auxiliary Transmission Oil Cooler Kit
by BD Diesel
SKU ds_BKJX_1030606-1/2
fast & Reliable
Sold and shipped out of the USA
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Original price
$720.95
-
Original price
$720.95
Original price
$720.95
$720.95
$720.95
-
$720.95
Current price
$720.95
Description
BDs High Performance CP3 (HPCP3) Injection Pump with up to a 72-percent increase in capacity / displacement delivers enough fuel to support up to 750hp while maintaining 24,000psi of rail pressure. The HPCP3 pump replaces the existing injection pump and simply bolts in place to produce up to 5.25 LPM versus the stock 3.05 LPM. That is right, all that fuel without going to a dual pump system – no extra pulleys, belts or pumps to install. BDs HPCP3 pumps are engineered with an enhanced metering unit and new design cam shaft with modified plungers and stroke. Plus, the HPCPS eliminates the off throttle fuel spikes common with stock pumps that can potentially damage injector nozzle tips when trying to produce more than 500hp. All of these modifications deliver long-term durability with consistent high fuel pressure supply on demand that provides efficient atomization resulting in more power, better combustion and lower EGTs. Designed for street, towing and race track applications, each HPCP3 injection pump is fully tested before leaving our facility. Chevy Duramax 6.6L and Dodge 6.7L engine applications coming soon!
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Description_DEF | Automatic Transmission Oil Cooler |
| Description_DES | BD Xtrude Transmission Cooler with Fan - Complete Kit 1/2in Lines |
| Description_DES | Xtruded Auxiliary Transmission Oil Cooler Kit |
| Description_EXT | BD Xtrude Transmission Cooler with Fan - Complete Kit 1/2in Lines |

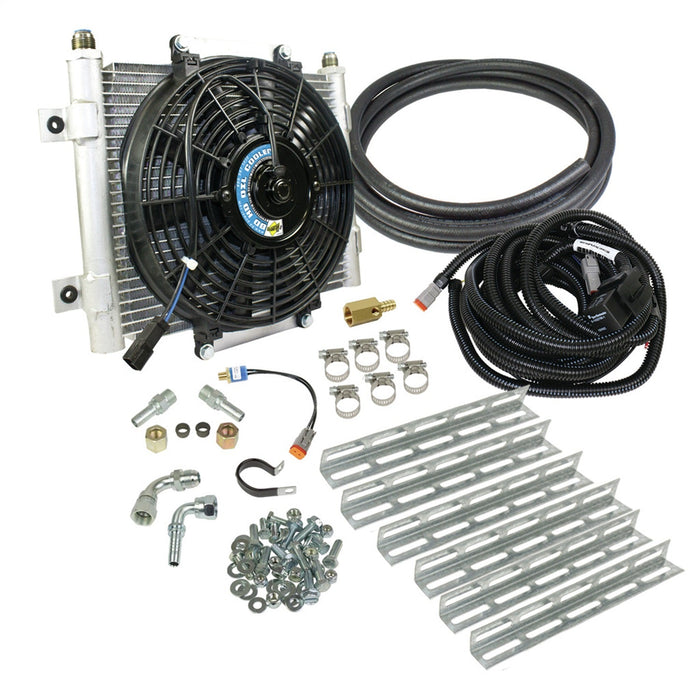

| Description_EXT | Xtruded Auxiliary Transmission Oil Cooler Kit; 1/2in. Tubing; Incl. Cooler/Brackets/Wiring Harness/Fittings/Temp Sensor/Sensor Adapter/Hoses/Bypass Frt/Rear Tube Eliminator/Hdw; |
| Description_FAB | 12 Months or 24000 Mile Warranty |

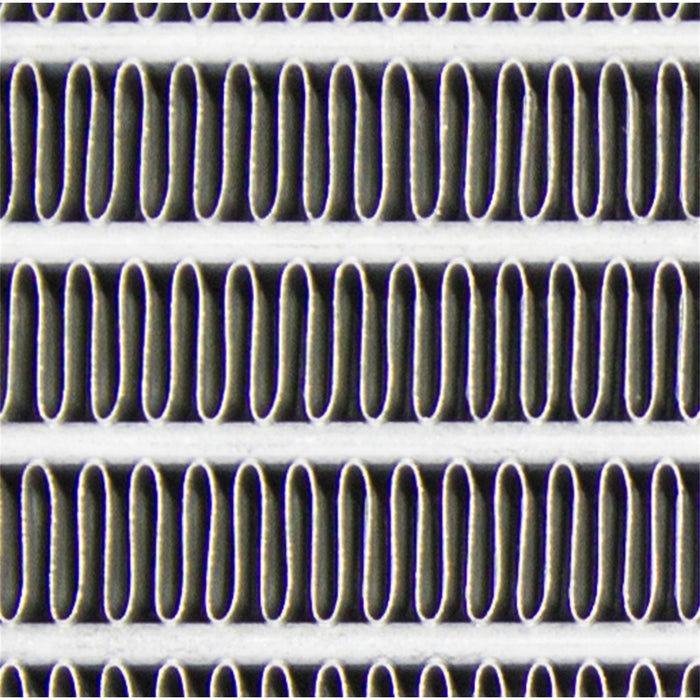

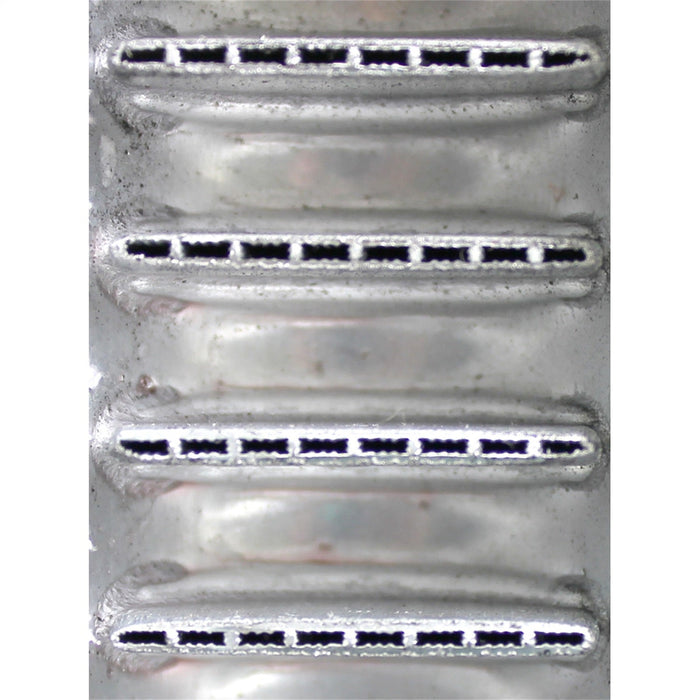

| Description_FAB | 200 Micro Extruded Passages |
| Description_FAB | 22 Percent More Cooling Over Other Designs |
| Description_FAB | 22% more cooling over other designs |
| Description_FAB | 33,930 BTU/HR and in excess of 30,000 GVW! |
| Description_FAB | 33930 BTU/HR |
| Description_FAB | Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal |
| Description_FAB | Build-It-Yourself Galvanized Bracket Kit For Quick Installation |
| Description_FAB | Dodge 47RH / 47RE / 48RE / 68RFE - 1/2-inch Cooler Lines |
| Description_FAB | Ford 5R110/6R140 - 1/2-inch Cooler Lines) |
| Description_FAB | Furnace Brazed Rails Have Been Tested to 300psi of Pressure |
| Description_FAB | Kits complete with all fittings, clamps, hoses and hardware |
| Description_FAB | Large 5/8-inch Ports Prevents Inlet/Outlet Restriction |
| Description_FAB | Large Surface Area To Transfer Heat For External Air Flow Cooling |
| Description_FAB | Pre-Wired Loomed Harness w/Fuse And Relay w/Plug In Connectors |
| Description_FAB | The pre-wired loomed harness with fuse and relay comes with plug-in connectors |
| Description_FAB | Thermostatically Controlled 80-watt 10-inch 800 CFM Electric Fan |
| Description_FAB | Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan |
| Description_FAB | Turbulent Oil Flow Design Promotes a More Complete Cooling |
| Description_INV | XTRUDED TRANS COOLER 1/2 INCH LINES |
| Description_LAB | Proposition 65 |
| Description_MKT | BDs High Performance CP3 (HPCP3) Injection Pump with up to a 72-percent increase in capacity / displacement delivers enough fuel to support up to 750hp while maintaining 24,000psi of rail pressure. The HPCP3 pump replaces the existing injection pump and simply bolts in place to produce up to 5.25 LPM versus the stock 3.05 LPM. That is right, all that fuel without going to a dual pump system – no extra pulleys, belts or pumps to install. BDs HPCP3 pumps are engineered with an enhanced metering unit and new design cam shaft with modified plungers and stroke. Plus, the HPCPS eliminates the off throttle fuel spikes common with stock pumps that can potentially damage injector nozzle tips when trying to produce more than 500hp. All of these modifications deliver long-term durability with consistent high fuel pressure supply on demand that provides efficient atomization resulting in more power, better combustion and lower EGTs. Designed for street, towing and race track applications, each HPCP3 injection pump is fully tested before leaving our facility. Chevy Duramax 6.6L and Dodge 6.7L engine applications coming soon! |
| Description_MKT | Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look. |
| Description_SHO | A/TOilCooler |
| Description_SHO | XTRUDED TRANS COOLER |
| Engine | Motorhome Diesel Power |
| height | 8.0 |
| length | 18.0 |
| LTL | N |
| Make | Ford |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Short Label | bddiesel_prop65_warning.png |
| Prop 65 Warning | WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Title | BD Xtrude Transmission Cooler with Fan - Complete Kit 1/2in Lines |
| weight | 17.0 |
| width | 15.0 |
