Baja Designs 507199 KTM LED Headlight Kit w/Shell XL Pro (20-On) D/C Baja Designs
fast & Reliable
Sold and shipped out of the USA
Secure Payments
Financing Available
Trusted Brands
Top-Quality Suppliers
Description
If you're looking to go night riding look no further, our Baja Designs drop-in replacement headlight kit is a major upgrade from stock and features a rugged design. This headlight kit was designed with ample adjustability and features a significant amount of vertical and horizontal spread for ultimate trail coverage. This specific model utilizes our XL Pro which produces 4600 lumens and features a 20 percent dimming feature. Installation on this kit is simple, with only a simple pin of the connectors, and comes with all necessary hardwear.

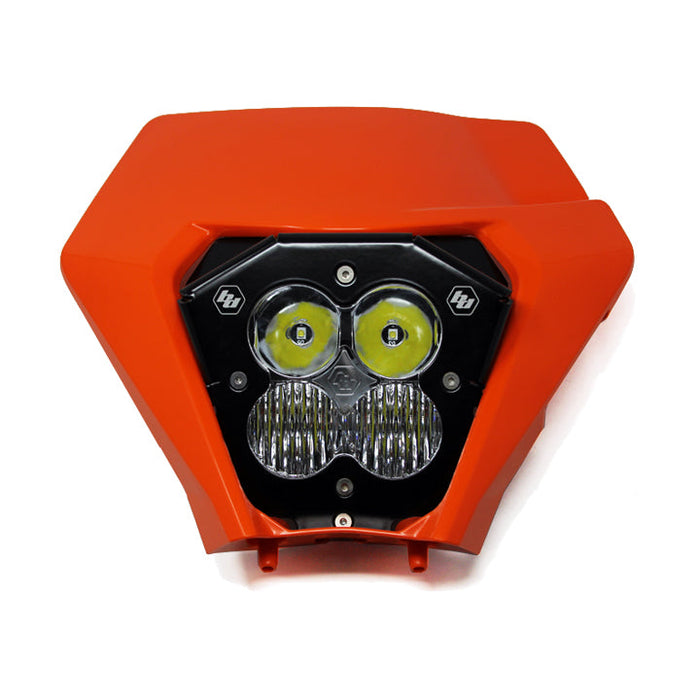

This kit comes preinstalled into a factory KTM Headlight mask (20-On). We offer this kit for the bikes that didn't come equipped with a headlight shell or for customers who don't want to disassemble their factory unit. This kit will require our [../../../../products/ktm-husqvarna-hi-low-headlight-wiring-harness-for-xl-pro-xl80-lights-ktm-husqvarna-applicable-models/]129016 harness to work with the factory Hi/Lo switch.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Warnings and Cautions:This kit will require the use of our <a href="/products/ktm-husqvarna-hi-low-headlight-wiring-harness-for-xl-pro-xl80-lights-ktm-husqvarna-applicable-models/">129016 wiring harness </a>to use the Hi/Lo feature.
Baja Designs Features:
- Satisfactions Guarantee - 30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock - Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
5000K Daylight - Less Driver Fatigue, Natural Color Specifications:
- Lumens: 4900 Utilizing 4 Cree LEDs
- Wattage/Amps: 40W / 2.9A
- Dimensions: 4.43 inch x 3.65 inch x 4.43 inch
- Weight: 2.45 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hardcoated Polycarbonate
- Housing: Hard Anodized and Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Includes:
- XL Pro, LED KTM Kit With 2017-2019 Headlight Shell
- AC/DC Power convertor
Patterns:
High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
Specifications
| bezel_material | Billet Machined Aluminum |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/baja%20asap.jpg |
| finish_l | Hard Anodized |
| height | 12.0 |
| housing_type | Hard Anodized and Powder Coated Cast Aluminum |
| ik10_compliant | IK10 Compliant (Mechanical Impact Testing) |
| last_update | 2023-01-01 08:10:43 |
| length | 12.0 |
| lens_color | Clear |
| lens_material | Hard Coated Polycarbonate |
| life_span_expectancy | 49,930 Hours |
| light_pattern | Driving/Combo |
| LTL | N |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov |
| Series | XL Pro Series |
| sold_as | Kit |
| Universal | No |
| vehicle_type | Motorcycle |
| Warranty | Lifetime Limited |
| waterproof_rating | IP69K (Waterproof up to 9ft Pressure Washable) |
| weight | 8.0 |
| width | 12.0 |
